GDF-H Series
An economical compact servo solenoid valve for liquid, suction, and hot gas lines with fluorinated refrigerants.
contact us- Technical Parameters
- Accessories
- Download
General
An economical compact servo solenoid valve for liquid, suction, and hot gas lines with fluorinated refrigerants.
Characteristics
- Suitable for HFC & HCFC refrigerants.
- Temperature of medium -40℃～＋140℃.
- Environmental temperature -30℃～+55℃.
- Max. working pressure 45 bar.
- Maximum test pressure ≥68 bar.
- Alternative coils:
AC：24V, 36V, 110V, 220V
DC：12V, 24V
Other Technical Data

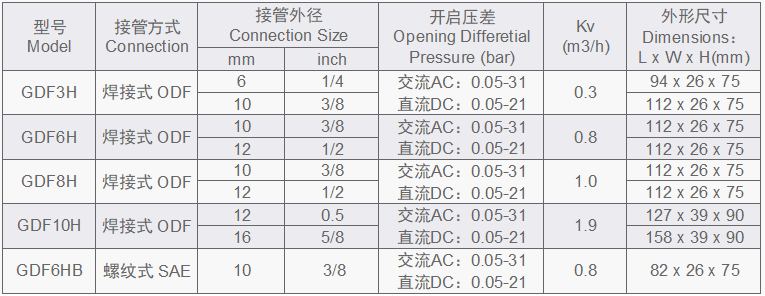

The Kv value is the water flow in m3/h at a pressure drop across valve of 1 bar，ρ=1000kg/ m3.

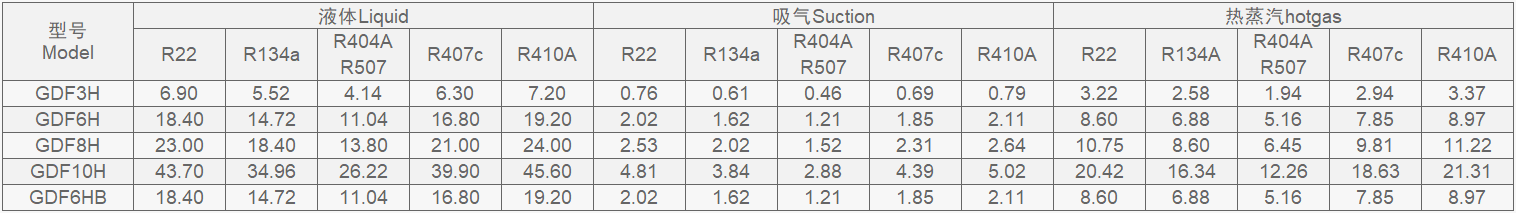

Nominal Liquid Capacity(KW)
Rated liquid and suction vapour capacity is based on evaporating temperature te=4.4℃,liquid temperature ahead of valve t1=38℃,and pressure drop in valve R134a △P=0.15 bar, R22、R404A、R507、R407c、R410A ΔP=0.21bar.
Rated hot gas capacity is based on condensing temperature tc=+40℃,pressure drop across valveΔP=0.8bar,hot gas temperature th=+65℃,and subcooling of refrigerant Δtsub=4K.
