TCLE、TRFE Series
TCLE TRFE series thermal expansion valve is a split expansion valve, suitable for a wide range of fields such as air conditioning, commercial refrigeration, transportation air conditioning and refrigeration.
contact us- Technical Parameters
- Accessories
- Download
Characteristics
- The assembled structure is simple and easy to repair. The power head and valve core can be replaced simply by unscrewing the fixing bolts.
- Stable superheat; With bi-directional throttle function.
- MOP (motor overload protection) function is available.
- Various sizes and forms of take-up are available.
- Suitable for media such as R22, R134a, R407c, R404A/R507, R410A refrigerant.
- Special requirements please contact with
General
TCLE TRFE series thermal expansion valve is a split expansion valve, suitable for a wide range of fields such as air conditioning, commercial refrigeration, transportation air conditioning and refrigeration.

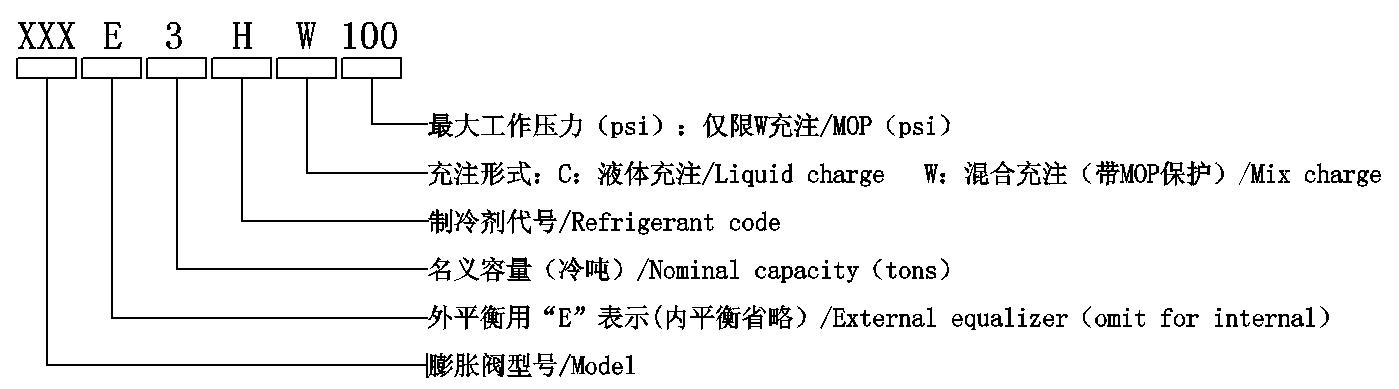

Expansion valve product naming
H（R22） M（R134a）
N（R407c） S（R404A/R507）Z(R410A)

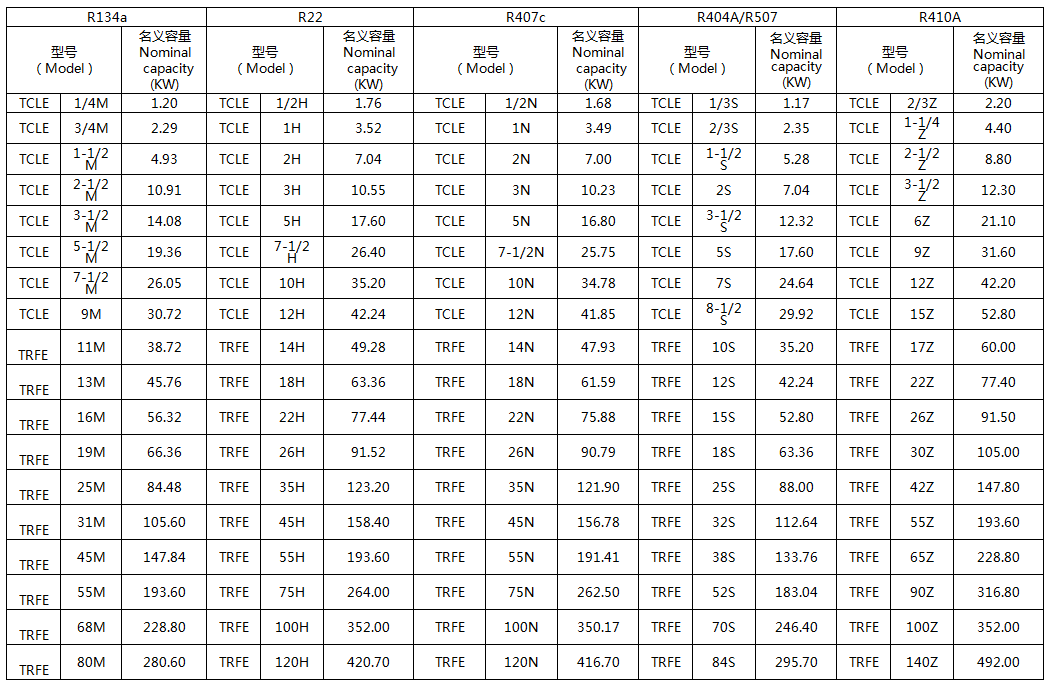

Other Technical Data
Note: The nominal cooling capacity is based on the evaporating temperature te=4.4°C, the condensing temperature tc=40°C, and the pre-valve refrigerant temperature t1=38°C.
Note: For other operating characteristics and specifications, please contact the company.
Superheat regulation
The factory superheat is set to 3.5K and the static superheat adjustment range is 2 to 8K.
Turn the adjusting lever counterclockwise one turn to reduce the superheat by 0.3K.

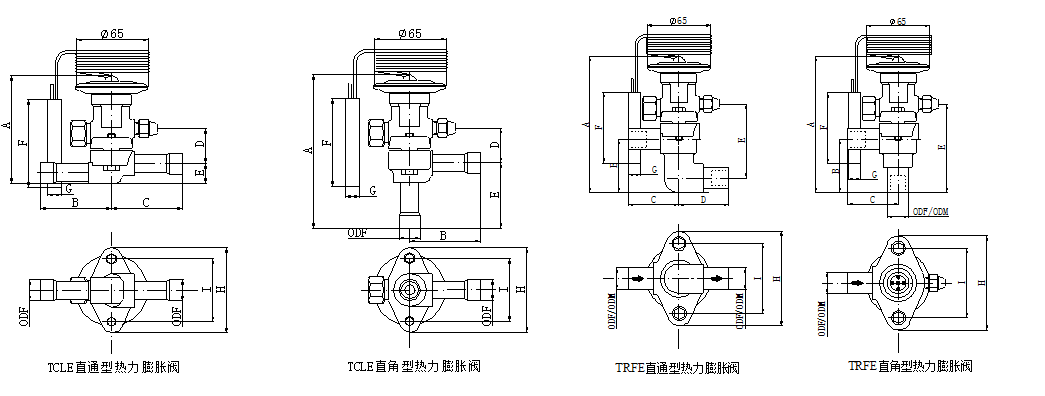

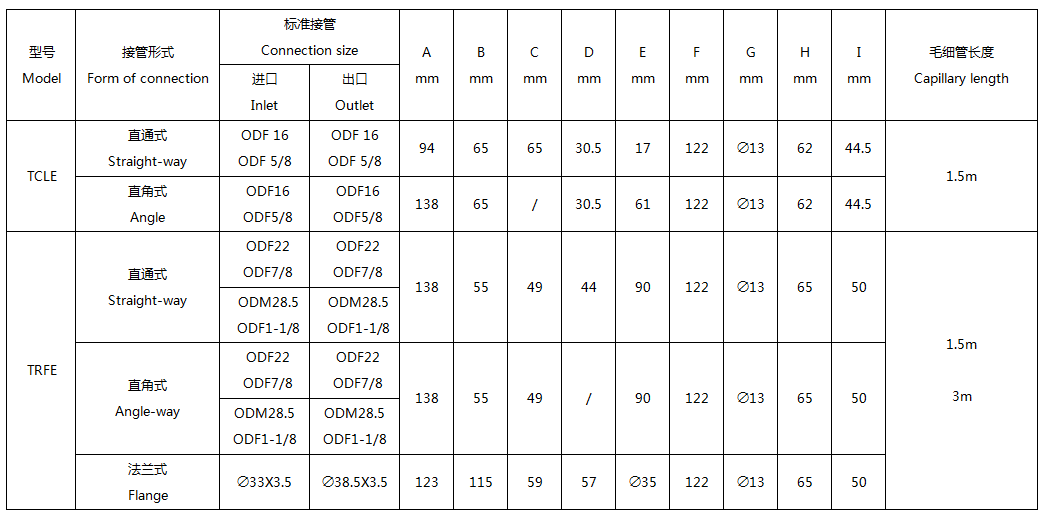

Dimensions
Note: There are special requirements for the length of the capillary tube. Contact with the company.
